RX8 REW Swap OEM fitment manifold T4 twinscroll

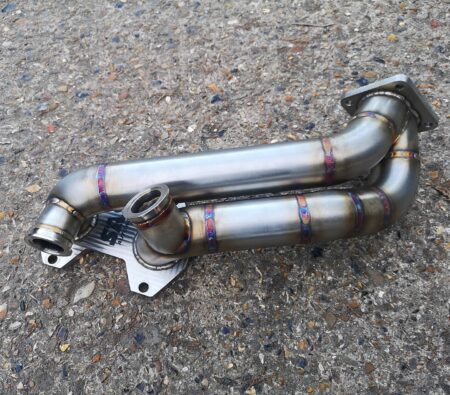

THE OEM FITMENT  MANIFOLD

Introducing the Manifold you need for your 13B swapped Rx8. made from sch40 304 stainless steel. Tig welded and back purged to perfection. featuring a 15mm thick Billet head flange and CVC milled T4 twin scroll collector  This manifold has 1.5″ runners and was made with most REW swapped RX8 owners in mind.

This manifold will allow you to run the Stock ECU Box and OEM water pump with an additional idler pulley for the auxillery belt. There is plenty of space for a Borg warner S300/EFR frame and all the garrett G30-40 frames.    Ample room for a  3″ or 3.5″ downpipe. The external turbosmart 50mm gate is tucked into the arch leaving space for a dump tube or the option to run it back into the downpipe.

this is also available as a non gated version to Run a internally gated turbo such as a Borg warner EFR 7670 or 8374 etc.

Compatible with RHD and LHD Rx8s. Hand made in the UK.

THE WASTGATE

Turbosmart are well established when it comes to boost control so it just makes sense to use their latest Wastegate in our kits. The new Gen-V 50mm comp gates are a direct upgrade to the V4 and still interchangeable. These come with all springs needed to run as little as  9psi or 30psi plus  and come as default in black if you would like another colour please contact us.

additionally I can add any EGT sensors or other provisions to these manifolds upon request.







So what’s included ?

•  SAS Autoworks T4 twin scroll Oem fitment  manifold
•  Turbosmart Gen V   50mm Wastegate ( when selected)
• SAS Autoworks  decals



We  ship worldwide Please ask us for a quote  if you are outside of the UK.

For any further questions  about this item we are always happy to help and feel free to contact us Via Telephone/whatsapp/email or social media. All my items are made to Order and customizable to your spec.

( full turbo kits listing soon also available on request)
